Richard Harris Posted November 27, 2015 Author Share Posted November 27, 2015 Brian, It is worth checking that your tracking is set up so the model runs straight on the ground, perhaps remove the rotors for this. If your right wheel is lifting and the model is starting to bank to the left this indicates that the rotors are not up to speed and you are more than likely travelling too fast on the ground. Best way to attempt a take off is to just point the model into wind, pull back on the rotors and give them a flick in an anti clockwise direction. Just let the model sit there whilst the blades accelerate, if they dont then apply a touch of power so that the model starts to move forwards but no more than walking pace. You should be able to hear the blades change note (it is quite distinct). At this point release the back tilt to the neutral position and increase power so that the model moves at a jogging pace, the model should then lift off completing a small hop. Try this until you get confortable with doing this, increasing the lengths of the hops. The biggest mistake I made at the start was trying to fly like a fix wing, running down the patch at full speed and pulling back on the rotors. Slow and steady wins the day. Rich Quote Link to comment Share on other sites More sharing options...
Brian Jones 9 Posted November 27, 2015 Share Posted November 27, 2015 Thanks for that Rich I will give it a try when the weather allows and report back Quote Link to comment Share on other sites More sharing options...
Former Member Posted November 27, 2015 Share Posted November 27, 2015 [This posting has been removed] Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 I put a new roll of film in the Kodak Brownie and took a few pics of my build....at the time I had no intention to post them ..but this thread has slowed down a little...and this model is well worth building. Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Balsa plug for cowl Quote Link to comment Share on other sites More sharing options...

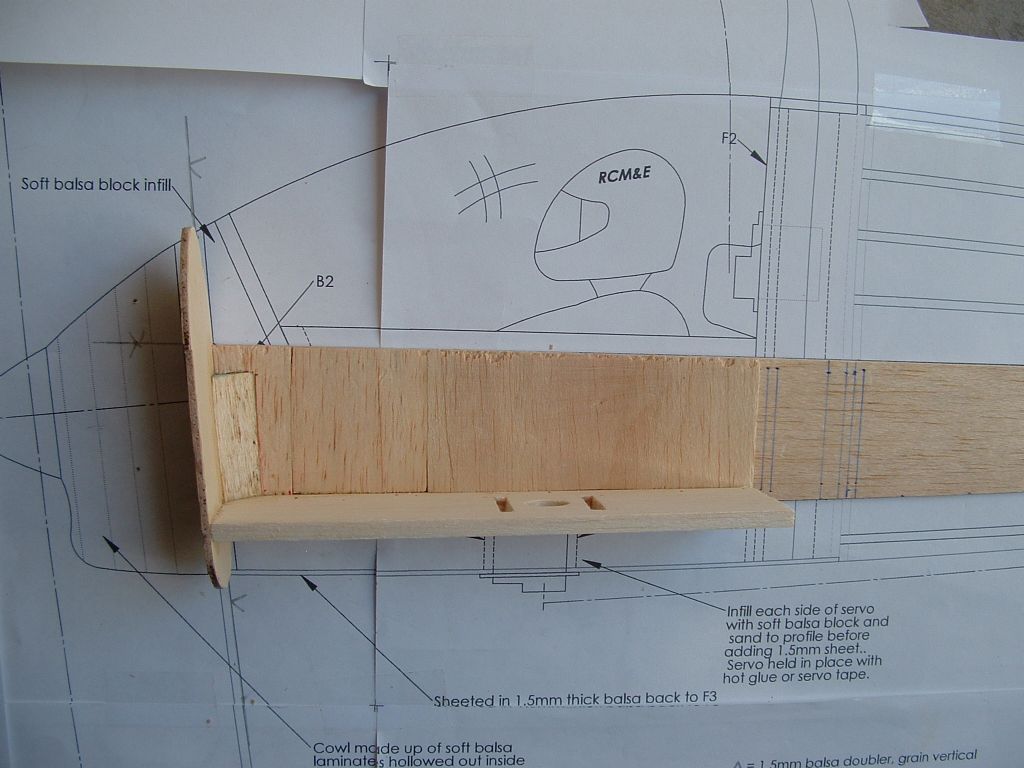

Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Esc compartment. This is a modification to the plan. By moving the rudder servo to the rear..it allowed the ESC to be mounted under the battery compartment. Edited By Chris Dowell on 04/12/2015 01:12:49 Quote Link to comment Share on other sites More sharing options...

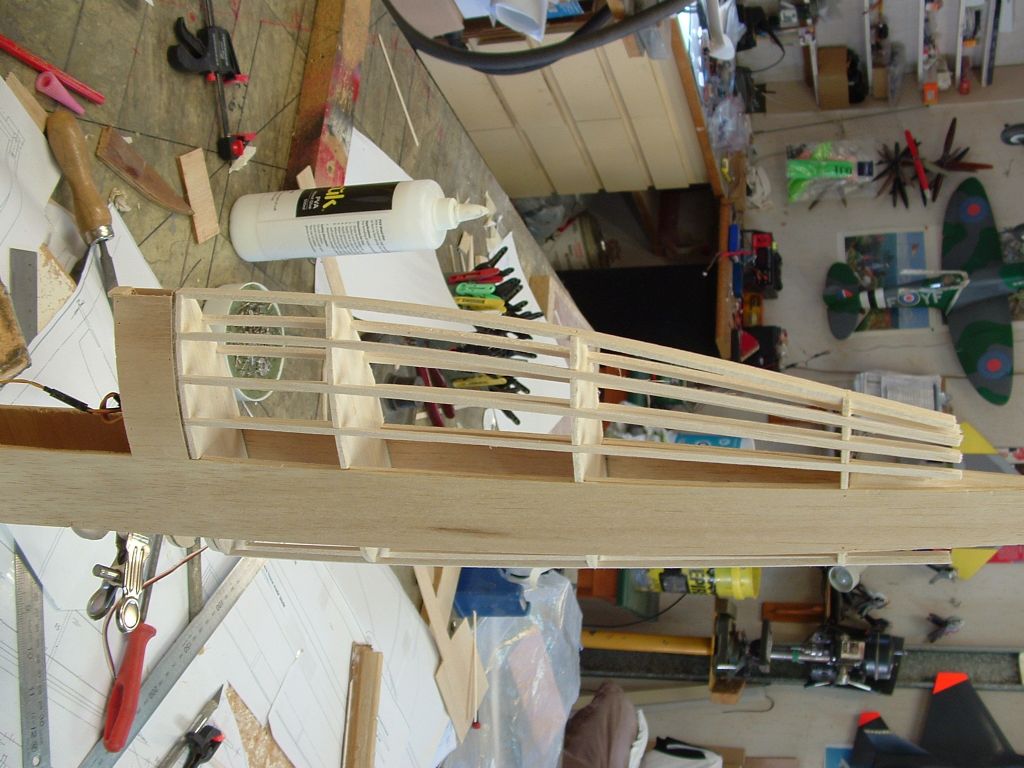

Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Stringers added. Quote Link to comment Share on other sites More sharing options...

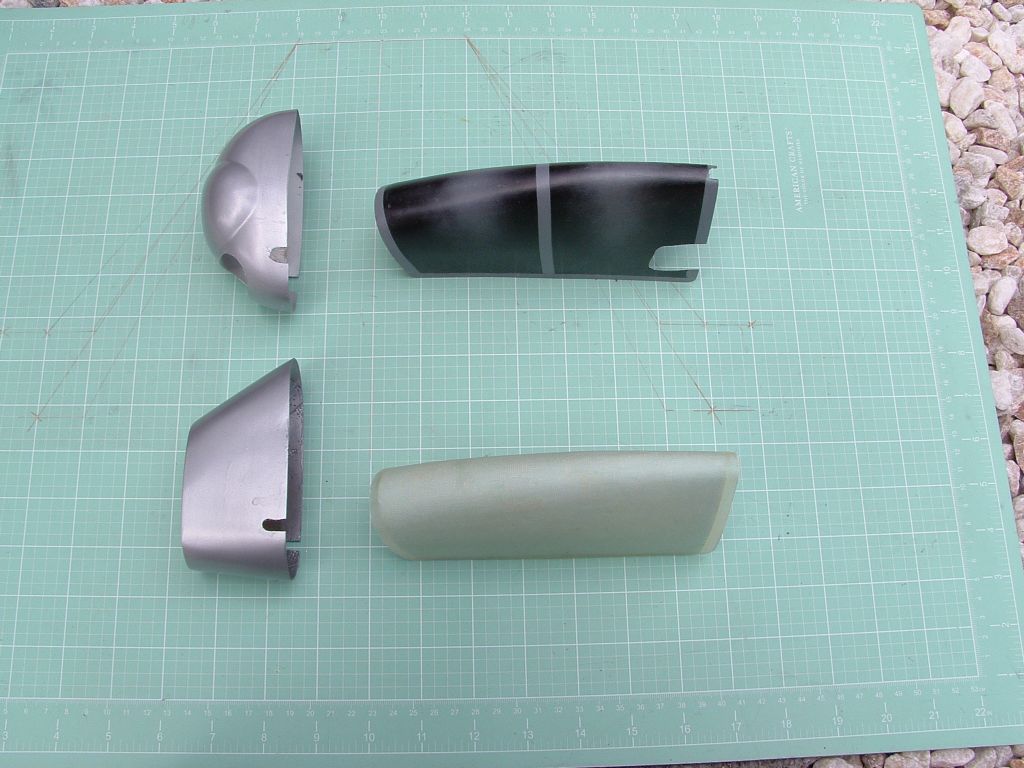

Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 I played with a couple of different cow's and canopy's Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Edited By Chris Dowell on 04/12/2015 01:36:50 Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Edited By Chris Dowell on 04/12/2015 01:39:30 Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Back end cleaned up. Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Wiring in place Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 Balsa frame before covering. Quote Link to comment Share on other sites More sharing options...

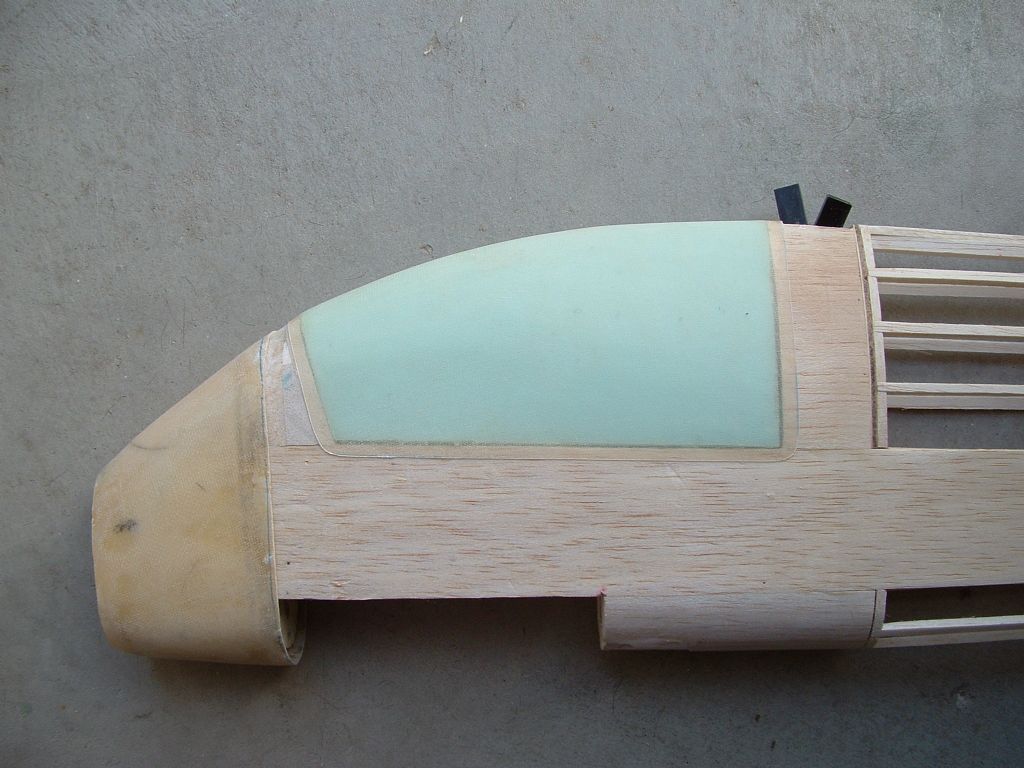

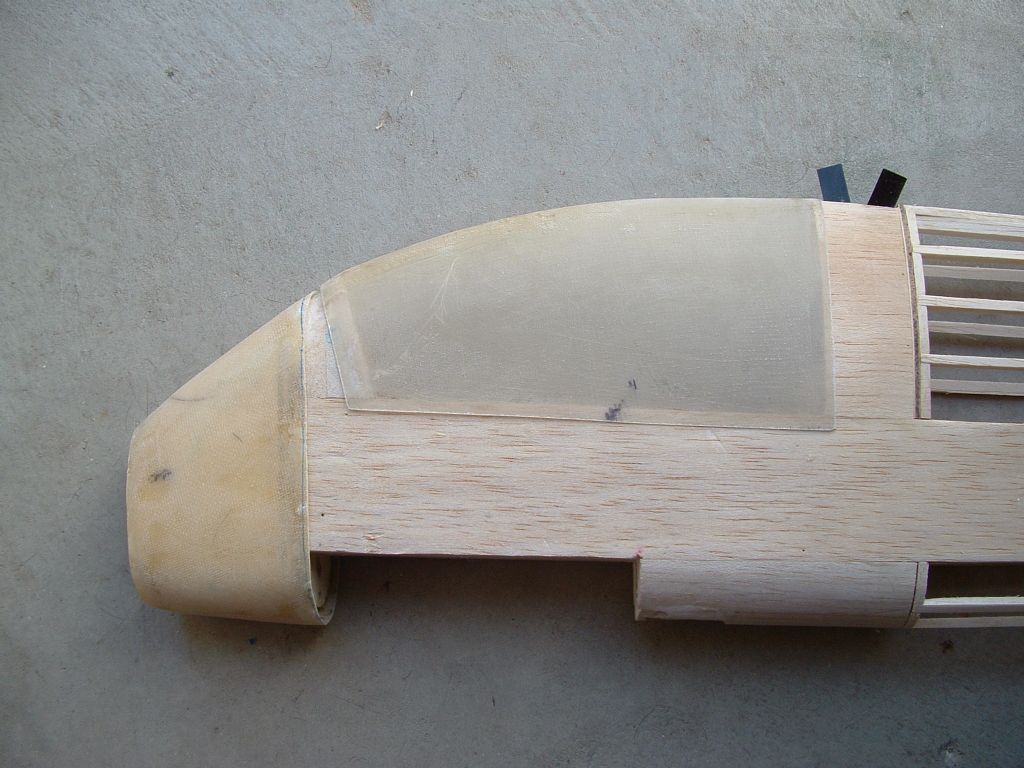

Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 With glass cowl fitted Quote Link to comment Share on other sites More sharing options...

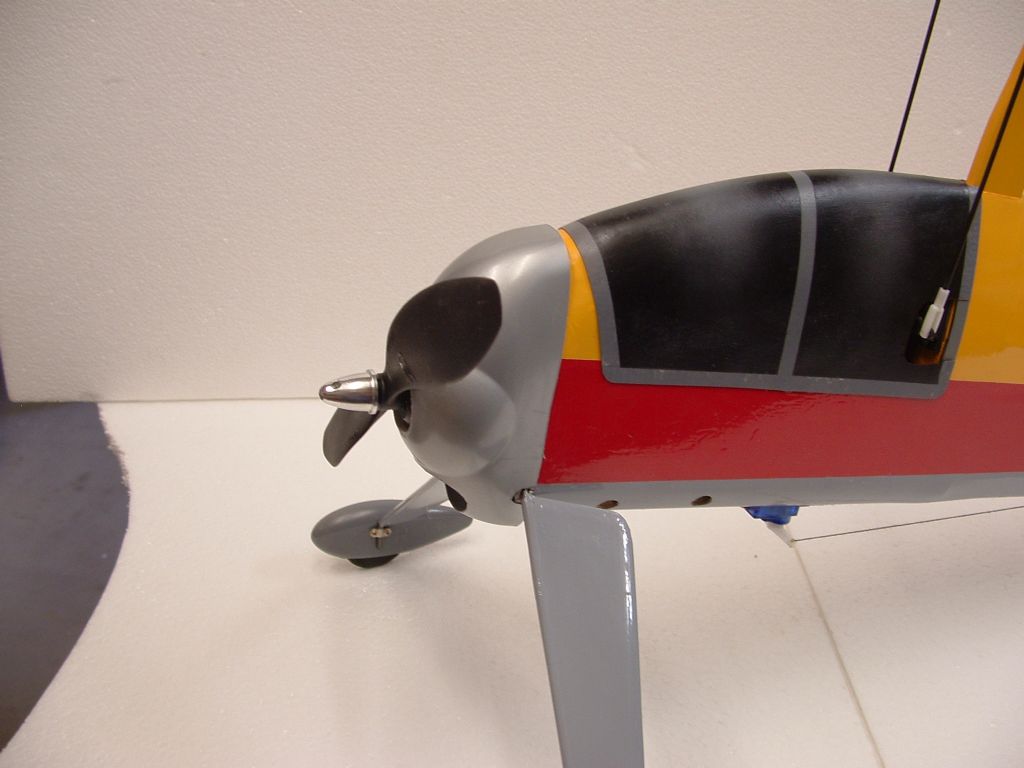

Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 And with bottle top cowl. Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 This shows mast held with 3 screws. Quote Link to comment Share on other sites More sharing options...
Steve Jones 2 Posted December 4, 2015 Share Posted December 4, 2015 Nice shots Chris, Yes a great model, mine is nearly finished. Those not spotted by pics and build is at http://www.rcgroups.com/forums/showthread.php?t=2295172&page=3 Post #45 onwards Steve Quote Link to comment Share on other sites More sharing options...
Former Member Posted December 4, 2015 Share Posted December 4, 2015 [This posting has been removed] Quote Link to comment Share on other sites More sharing options...

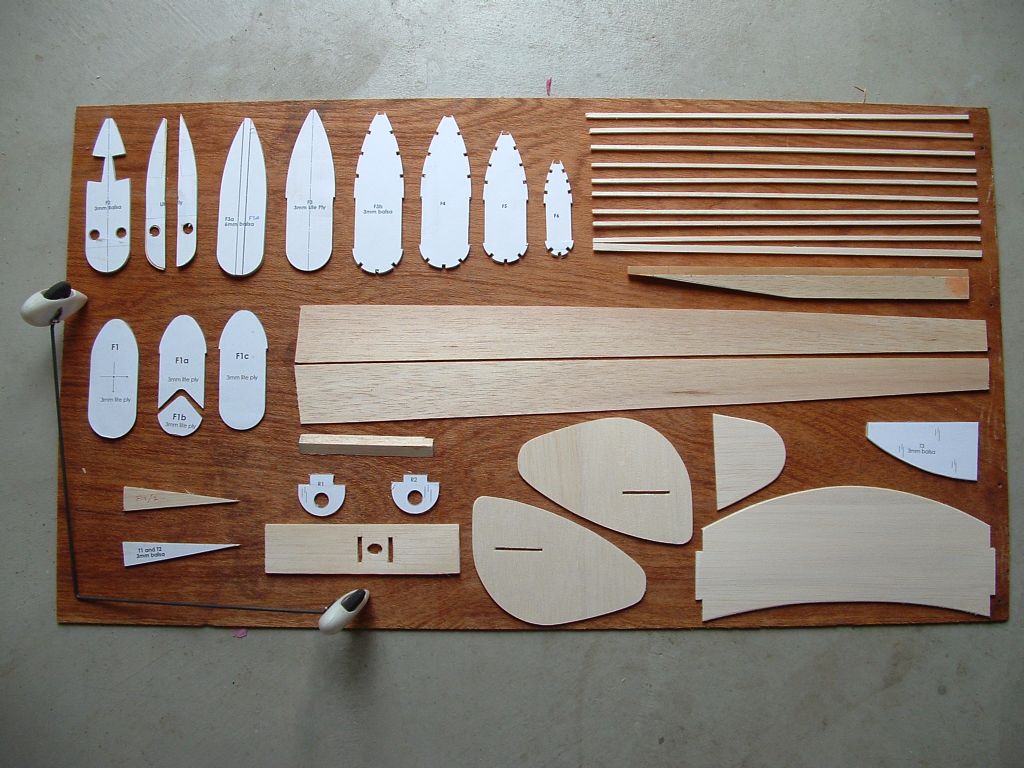

Terry Whiting 1 Posted December 4, 2015 Share Posted December 4, 2015 Hi Chris, An impressive kit of parts, and all coming together making a very nice build of it. I'm sure your posts will help many of those new to to gyros, and to some of us which aren't so new Cheers mate. Quote Link to comment Share on other sites More sharing options...
Chris Dowell Posted December 4, 2015 Share Posted December 4, 2015 There is one other small mod that I made to this build. I thought that a little more rudder may be handy...so I went with linking up the two outer fins as Rich did with the big blue bird. Happy Landings Chris... Quote Link to comment Share on other sites More sharing options...
Steve Jones 2 Posted December 5, 2015 Share Posted December 5, 2015 So, all done . Silver for the vintage feel.. Yet another stunner from your fantastic stable Rich Quote Link to comment Share on other sites More sharing options...
Steve Jones 2 Posted December 5, 2015 Share Posted December 5, 2015 Quote Link to comment Share on other sites More sharing options...
Richard Harris Posted December 6, 2015 Author Share Posted December 6, 2015 Steve, Simply stunning, can't wait to see it in the flesh. The green looks great! Rich Quote Link to comment Share on other sites More sharing options...
